Power Plant Automation Retrofit

Company profile

Darkhan Thermal Power Plant is a state owned 48MW coal power plant in Mongolia. It provides electricity to the 100,000 residence of Darkhan city and Selenge province. The plant was built in 1963 and consists of four 12 MW turbines
aaad2e0c1f3b7363d978bfa7fda51a05
3539c2d479299ad0f8037ae1d1977f71
631e19760090511cef18d8552de1589c
887c30c6a8945661692c2d72feec0a5f
bfd7250a52f3e58f6daa393ff7fce4c7
57a1aaaeaf036b03703d17ee7ba389f5
9c06a616b8ca1c3b35365b0e4a3cd609
842b6b5af47c94d343ef5a92ecd3880e

Before implementation:

  • Since 2012 modernization process is ongoing on TPP to improve its control as well as to increase the total power capacity to 83 MW
  • The existing fault recording and automation system is based on Russian equipment that was commissioned in 2002

Project results:

  • There are 88 additional calculated parameters and 420 various warning events which was set up for immediate user notification about changes in technological process
  • Tens of mnemonic diagrams were developed for full detailed control of the processes at TPP

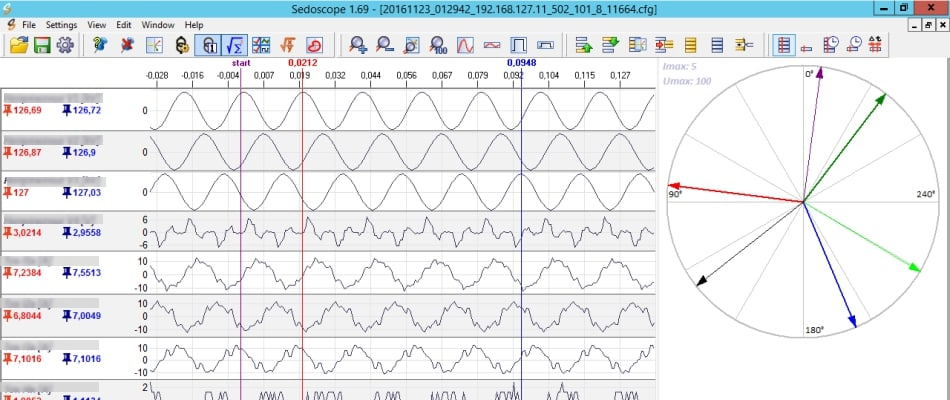

  • Union of disturbance records from 39 devices into single file
  • Monitoring and control of the plant with 1-second data update time. This includes measurements through 380 analogue signals, 624 status signals, normal mode currents and fault currents
  • Display reliable information on the operation of the main TPP scheme
